24V 220V IP68 Waterproof CNC Machine Explosion-proof Lamp Led Tube Light 300mm 400mm 600mm 800mm
| Product name | 24V 220V IP68 Waterproof CNC Machine Explosion-proof Lamp Led Tube Light 300mm 400mm 600mm 800mm |
| Model number | F9 |
| Input voltage | AC/DC 24V |
| Color temperature range | 4000-6000K |
| Power cord length | About 0.55M (standard) |
| Installation method | L-shaped fixing bracket, L-shaped movable bracket |
| Specification length | 282mm~1200mm |
| Power | 10W~40W |
| Input Current | (24V)335mA~1670mA |
| (220V)36mA~200mA |
| Luminous flux | 965~3950Lm |
| Protection class | IP68 |
| Luminous efficiency | 95-105Lm |
| Color Rendering Index (CRI) | >80 |
| Drive power supply | isolation |
| Power factor | >0.9 |
| Surface temperature | <60℃ |
| Light Angle | 110° |
| life of lamps and lanterns | 70000H |
| Certification | CE, RoHS |
| Environment temperature | -20~45℃ |
| Storage temperature | -40~70℃ |
| Environmental humidity | 10~90% |
| Store humidity | 10~90% |
| MOQ | 2 Pcs |
| Lead time | within 1-3 working days |
| Payment | Paypal/WU/TT/Trade Assurance/Money Gram/Cash |
| Shipping | DHL/UPS/FedEx/Aramex/EMS/HK Post |

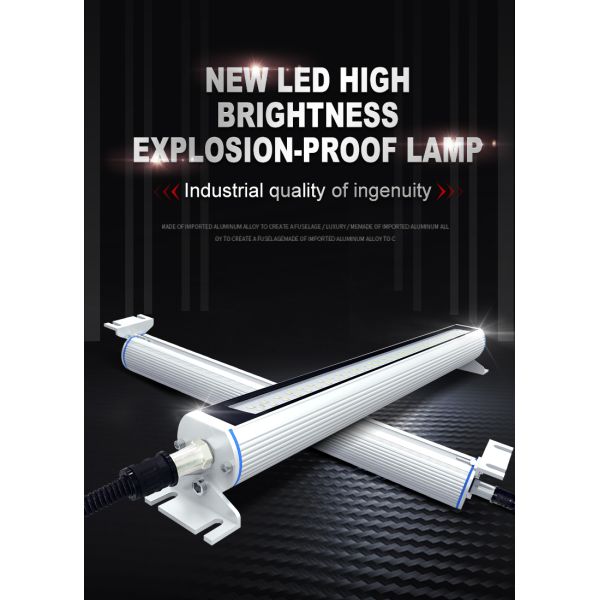

OUVJAN LED F9 Machine Light - Illuminate Your Industrial Precision
Product Overview
The OUVJAN LED F9 is a patented utility model industrial machine light, designed as a large-volume classic model for demanding machining environments. It delivers exceptional illumination for precision equipment, ensuring clarity and reliability in every operation.
Technical Excellence
- Lumen Output: Ranges from 7250lm (10W) up to 5000lm (40W), tailored to your power needs.
- Efficiency: 120-130lm/W, maximizing energy utilization.
- CRI: >80Ra, guaranteeing true-to-life color rendering for detailed work.
- Beam Angle: 110°, providing wide-area coverage.
- IP Rating: IP68, fully dust-tight and waterproof—resists coolants, lubricants, and harsh conditions.
- Temperature Resistance: <60°C, ensuring stable performance even in heated environments.
- Lifespan: 50,000H, reducing maintenance and replacement costs.
- Material: Anodized aluminum body + tempered glass cover, durable against high temperatures and industrial wear.
Coding Principles (Customize Your Light)
Decode the OUVJAN F9 model with our intuitive coding system:
- Model No.: F9 (fixed)
- Voltage: 02 (AC/DC24V) / 03 (AC220V 50/60Hz)
- CCT: B (4000-4500K) / C (6000-6500K)
- Length (mm): 300 / 400 / 600 / 800 / 1200
- Power: 10W / 14W / 20W / 24W / 40W
- Bracket: L (Fixed bracket) / H (Sliding bracket) / M (Extended sliding bracket)
Applications
Ideal for engraving machines, EDM (Electrical Discharge Machining), machining centers, CNC machines, grinding machines, and all industrial machines or hard-to-reach areas with high illumination demands.
Standout Features
- Premium LED Source: Imported 2835 LED chips—low wattage, high efficiency, and ultra-long lifespan.
- Robust Build: Anodized aluminum housing + tempered glass, resistant to high temperatures, coolants, and lubricants.
- IP68 Protection: Industry-leading dust and water resistance for heavy-duty industrial use.

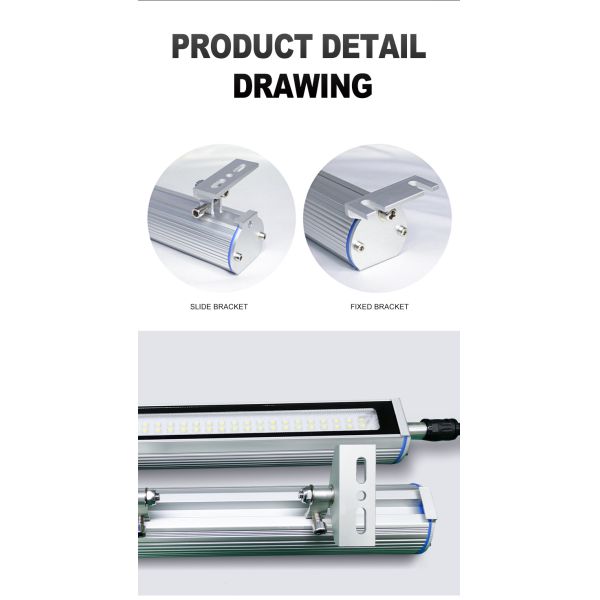

- Versatile Installation: Aluminum brackets (fixed/sliding/extended sliding) for seamless integration with any machine.
Elevate your machining precision with the OUVJAN LED F9—where durability, efficiency, and superior illumination meet. Contact us today to customize your perfect industrial lighting solution!
FAQ:
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry!
