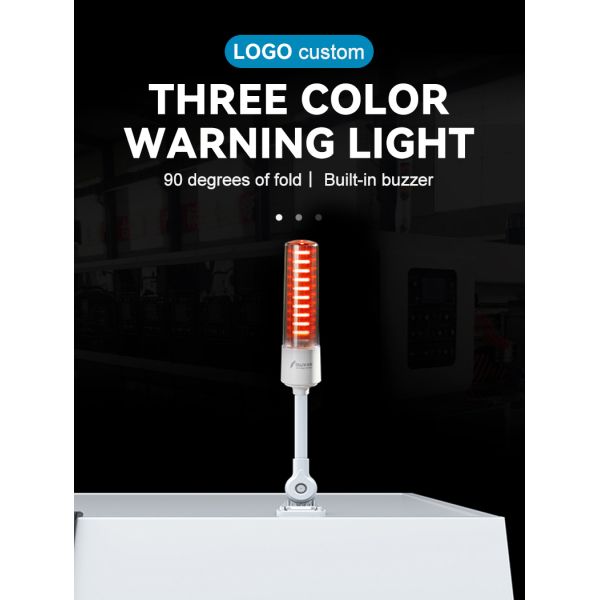

Quality Assurance Aluminum Lamp Shell Led Flashing Warning Tower Light With Built-In Buzzer
| Product name | Quality Assurance Aluminum Lamp Shell Led Flashing Warning Tower Light With Built-In Buzzer |
| Model number | Q5C |
| Input voltage | DC24V |
| Input current | Monochromatic 100mA |
| Buzzer:25mA |
| Power | 2.4W-3.2W |
| Protection grade | IP50 |
| Length of the wire | 0.5m |
| Light body color | Silver |
| Light source | Patch 2835 LED |
| Light life | 70000 hours |
| Surface temperature | <50℃ |
| Buzzer | >95dB |
| Shiny number | 60-70/min |
| Material | lampshade:PC |
| Lamp shell:Aluminum |
| Light Angle | 360° |
| Glow color | red,yellow,green |
| Certification | CE, RoHS |
| Environment temperature | -20~45℃ |
| Storage temperature | -40~70℃ |
| Environmental humidity | 10~90% |
| Store humidity | 10~90% |
| MOQ | 2 Pcs |
| Lead time | within 1-3 working days |
| Payment | Paypal/WU/TT/Trade Assurance/Money Gram/Cash |
| Shipping | DHL/UPS/FedEx/Aramex/EMS/HK Post |
OUJVAN Q5C Tricolor Industrial Signal Light: Advanced Safety & Efficiency for Industrial Automation
Key Features
- LED High Tech Luminescent Patent: Adopts imported LED chips with low energy consumption, high brightness, and long service life.
- Single-Layer Bright Tricolor Display: Utilizes PC transparent tube—clear, non-yellowing, and displays three colors in a single layer with colorful, non-glaring illumination.
- Customizable Logo: Lamp body can be customized with an exclusive logo to enhance brand image and showcase brand strength.
- Foldable Base: Hidden foldable design enables convenient equipment transportation; features a porous design for easy, 按需 installation.
Technical Parameters
- Current: One color: 70-80mA, Buzzer: 20mA
- Flash Frequency: 60-70 Hz/min
- Buzzer Volume: >95dB
- IP Rating: IP54
- Temperature: <50°C
- Lifespan: 50,000H
- Color: White
- Installation: Fixed by screw
- Material: Lens: PC, Lamp: ABS
Application Scope
Suitable for automation equipment, security inspection equipment, LED packaging equipment, alarm systems, SMT equipment, CNC machine tools, engraving machines, industrial and mining equipment, etc.
Coding Principle (Customization)
- Model No: Q5C
- Layer: 1 (One-layer)
- Mounting: A (Foldable type)
- Voltage: 02 (DC24V)
- Function: B (Steady), S (Red flash), F (Steady with buzzer), C (Red flash with buzzer)
- Connect Type: T (PNP&NPN)
- Color: R (Red), Y (Yellow), G (Green)
- Diameter: 55 (Φ55mm)
- Body Color: White
